Product on sale

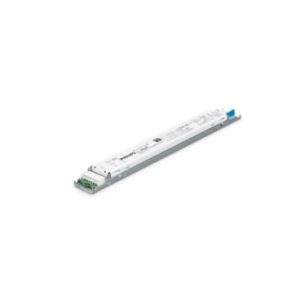

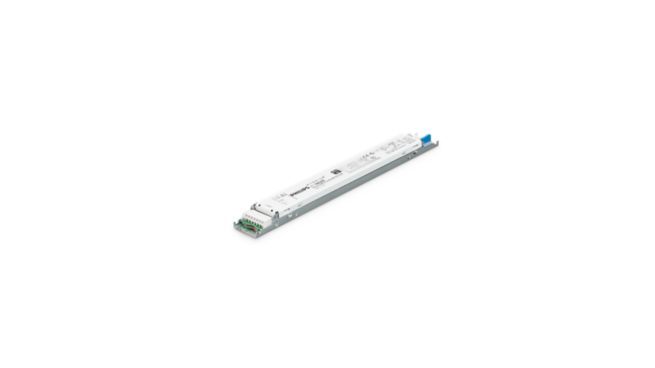

Xitanium 35W 0.08-0.35A 220V TD16 230V For Sale
30 people are viewing this right now
8 products sold in last 2 hours
Selling fast! Over 4 people have this in their carts
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Specifications
Collapse all
General Information
-
Nominal lifetime
100,000 hour(s)
-
-
Lighting Technology
LED
-
Operating and Electrical
-
Line Frequency
50 to 60 Hz
-
-
Input Frequency
50 to 60 Hz
-
-
Mains voltage operation (DC)
168-275 V
-
-
Total Harmonic Distortion IEC (Max)
20 %
-
-
Output Current Ripple (Max)
4 %
-
-
Maximum Efficiency at Full Load
90.9 %
-
-
Output Current (Max)
350 mA
-
-
Output Current Tolerance (Max)
5 %
-
-
Mains voltage performance (DC)
186-250 V
-
-
Power Factor (Fraction)
0.9
-
-
Open Circuit Voltage (DC) (Max)
250 V
-
-
Protection Level Up (L-N) at 5 kA (Max)
1 kV
-
-
Protection Level Up (LN-Earth) at 5 kA (Max)
2 kV
-
-
Input current (AC)
0.18 mA
-
-
Input current (DC)
0.22
-
-
Inrush Current Peak (Max)
19.4 A
-
-
Output Power (Max)
35 W
-
-
Default output current
80 mA
-
-
Inrush Current Width to 50% of Peak
200 µs
-
-
Power Factor 100% Load (Max)
0.9
-
-
Energy Metering
Yes
-
-
Constant Current (CC)
True
-
-
Constant Voltage (CV)
False
-
-
Diagnostics
True
-
-
Output Power (Min)
10 W
-
-
Output Current (Min)
80 mA
-
-
Output Voltage (Max)
220 V
-
-
Output Voltage (Min)
50 V
-
-
Number of Products on MCB (16A Type-C) (Max)
Collapse all
General Information
General Information
-
Nominal lifetime
100,000 hour(s)
-
-
Lighting Technology
LED
-
Operating and Electrical
-
Line Frequency
50 to 60 Hz
-
-
Input Frequency
50 to 60 Hz
-
-
Mains voltage operation (DC)
168-275 V
-
-
Total Harmonic Distortion IEC (Max)
20 %
-
-
Output Current Ripple (Max)
4 %
-
-
Maximum Efficiency at Full Load
90.9 %
-
-
Output Current (Max)
350 mA
-
-
Output Current Tolerance (Max)
5 %
-
-
Mains voltage performance (DC)
186-250 V
-
-
Power Factor (Fraction)
0.9
-
-
Open Circuit Voltage (DC) (Max)
250 V
-
-
Protection Level Up (L-N) at 5 kA (Max)
1 kV
-
-
Protection Level Up (LN-Earth) at 5 kA (Max)
2 kV
-
-
Input current (AC)
0.18 mA
-
-
Input current (DC)
0.22
-
-
Inrush Current Peak (Max)
19.4 A
-
-
Output Power (Max)
35 W
-
-
Default output current
80 mA
-
-
Inrush Current Width to 50% of Peak
200 µs
-
-
Power Factor 100% Load (Max)
0.9
-
-
Energy Metering
Yes
-
-
Constant Current (CC)
True
-
-
Constant Voltage (CV)
False
-
-
Diagnostics
True
-
-
Output Power (Min)
10 W
-
-
Output Current (Min)
80 mA
-
-
Output Voltage (Max)
220 V
-
-
Output Voltage (Min)
50 V
-
-
Number of Products on MCB (16A Type-C) (Max)
-
Nominal lifetime
100,000 hour(s)
- Lighting Technology
LED-
Line Frequency
50 to 60 Hz
- Input Frequency
50 to 60 Hz- Mains voltage operation (DC)
168-275 V- Total Harmonic Distortion IEC (Max)
20 %- Output Current Ripple (Max)
4 %- Maximum Efficiency at Full Load
90.9 %- Output Current (Max)
350 mA- Output Current Tolerance (Max)
5 %- Mains voltage performance (DC)
186-250 V- Power Factor (Fraction)
0.9- Open Circuit Voltage (DC) (Max)
250 V- Protection Level Up (L-N) at 5 kA (Max)
1 kV- Protection Level Up (LN-Earth) at 5 kA (Max)
2 kV- Input current (AC)
0.18 mA- Input current (DC)
0.22- Inrush Current Peak (Max)
19.4 A- Output Power (Max)
35 W- Default output current
80 mA- Inrush Current Width to 50% of Peak
200 µs- Power Factor 100% Load (Max)
0.9- Energy Metering
Yes- Constant Current (CC)
True- Constant Voltage (CV)
False- Diagnostics
True- Output Power (Min)
10 W- Output Current (Min)
80 mA- Output Voltage (Max)
220 V- Output Voltage (Min)
50 V- Number of Products on MCB (16A Type-C) (Max)
Operating and Electrical
