Osram QTi DALI 1X21 39 DIM 4050300870366 Online Hot Sale

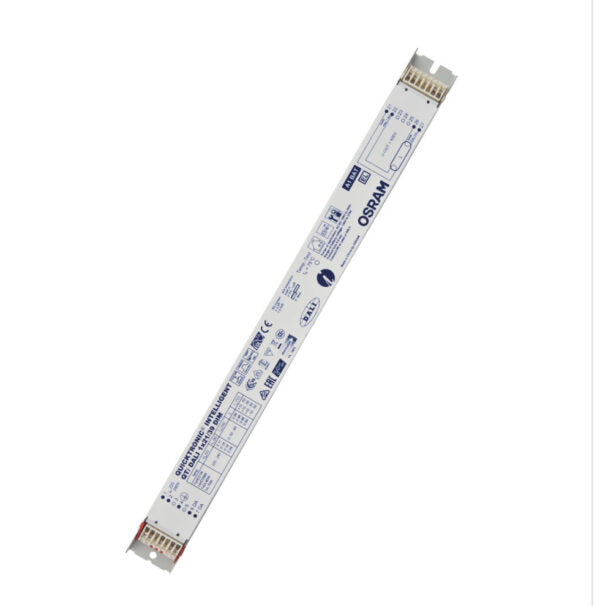

Osram QTi DALI 1X21 39 DIM 4050300870366

Product family features

•   Corridor function for direct connection of ECG to common motion sensor
•   Corridor function with pre-programmed light program
•   Touch DIM function for free parameterization of light value and turn on time
•   Fit for SMART GRID for feedback of consumed mains power and lamp operating hours
•   Fit for emergency function for automatic detection of emergency lighting by ECG
•   Very low standby power consumption: < 0.5 W
•   Lifetime: > 100,000 h (for T = 65 °C at Tc)
•   Very high number of switching cycles: up to 300,000
•   Dimming range: 1…100 % (3…100 % with compact fluorescent lamp)
•   POWER2LAMP function for optimal matching of ECG power to lamp during lamp lifetime
•   Line frequency: 0 Hz, 50…60 Hz, rectified AC

• Product family benefits

  – System+ Guarantee available
  – Easy integration in luminaire thanks to same dimensions like DALI GI ECG _ Touch DIM function for easy and inexpensive dimming of several ECGs
  – Same luminous flux with direct and alternating current
  – Dimming of amalgam lamps without flickering or reduced lifespan
  – Automatic restart after lamp replacement

  DALI product features

  – Control via the DALI interface
  – Compliance with the DALI Version-1 and IEC 60929
  – Control input protected against overvoltage and polarity reversal (OSRAM ECG)

  Touch DIM and Touch DIM Sensor function
  – Manual dimming without controller and with standard switches

  -Including memory function (double click) and soft start

  Product Data Sheet

  OSQNDA121.pdf
