Product description

• NEW: lumDATA (Luminaire data, Energy reporting and Diagnostics & Maintenance)
• Dimmable 24 V constant voltage LED driver for flexible constant voltage strips

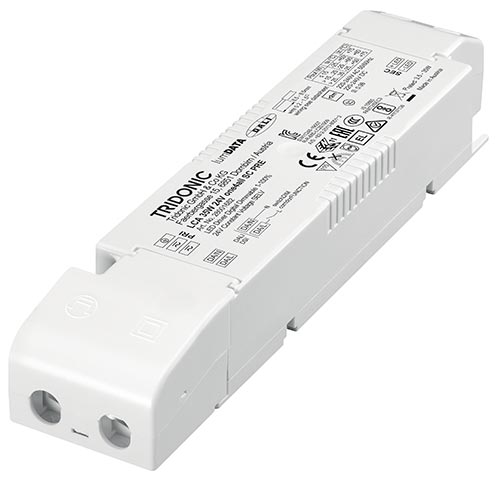

• Can bei either used built-in or independent with clip-on strain-relief (see data sheet chapter: 1. Standards)
• One4all interface and ready2mains enable different dimming options
• Dimming range 1 to 100 %
• No additional external dimmer is needed
• Suitable for emergency escape lighting systems acc. to EN 50172
• Nominal lifetime up to 50,000 h
• 5 years guarantee

• Typical applications

  • Cove lighting, facade accent lighting, ceiling integration

  • Technical details

    • 24 V, 35 W
    • Small design (195 x 43 x 30.2 mm) with stretched-compact strain relief
    • Small cross section
    • Push terminals for simple wiring
    • 1 output channel (+ –)

    • Interfaces

      • one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION)
      • ready2mains (configuration and dimming via mains)

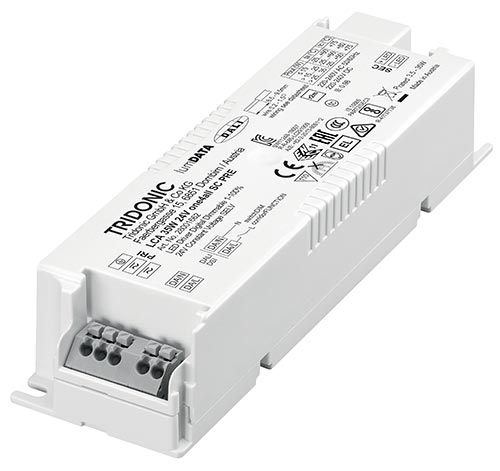

      • Terminal blocks: 45° push terminals

      • System solution

        • Tridonic LLE-FLEX ADV 600, 1,200, 1,800 lm m
        • Tridonic LLE-FLEX EXC 600, 1,200, 1,800, 2,500 lm m
        • In connection with Flex accessories wire to PCB plug
        • The functioning of third party light sources at a low dim level cannot be guaranteed and is not recommended

        •
