Product on sale

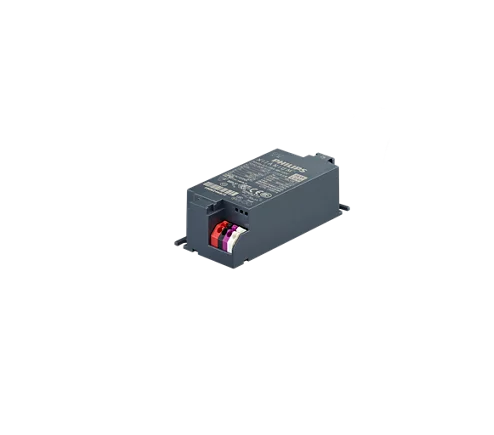

Xitanium 36W m 0.3-1.05A 54V 230V Online Sale

$22.81

26 people are viewing this right now
18 products sold in last 11 hours
Selling fast! Over 2 people have this in their carts
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

Specifications  929002101206

General information

Protection class IEC
Safety class I II

Operating and electrical

Output Current Ripple (Max)
4 %
Output Current (Max)
1050 mA
Open Circuit Voltage (DC) (Max)
60 V
Output Power (Max)
36 W
Output Power (Min)
11 W
Output Current (Min)
300 mA
Output Voltage (Max)
54 V
Output Voltage (Min)
24 V
System characteristics

Central DC Operation
Yes
YellowDot ready
No
Temperature

T-Case Lifetime (Max)
80 °C
T-Case Maximum (Max)
80 °C
Controls and dimming

Dimmable
No

Mechanical and housing

Product Length
97 mm
Housing
Mini 97x43x30 2p2p
Housing Dimensions
97.2 x 43 x 30
Overall length
97.2 mm
Overall width
43 mm
Overall height
30 mm
Approval and application

IP Classification
IP20  [ Finger-protected]
Isolation Classification
Class I and Class II
Approval Marks

CE marking

CB Certificate

ENEC certificate

CCC certificate

RCM compliance
Output Current Set Options
NFC
Product data

Full product code
871869964976000
Order product name
Xitanium 36W m 0.3-1.05A 54V 230V
EAN UPC – Product
8718699649760
Order code
929001486006
Numerator – Quantity Per Pack
1
Numerator – Packs per outer box
20
Material Nr. (12NC)
929001486006
Net Weight (Piece)
0.100 kg
