TForce Core LED road 17W 730 E27 MV For Sale

Trueforce Core LED
SON-T

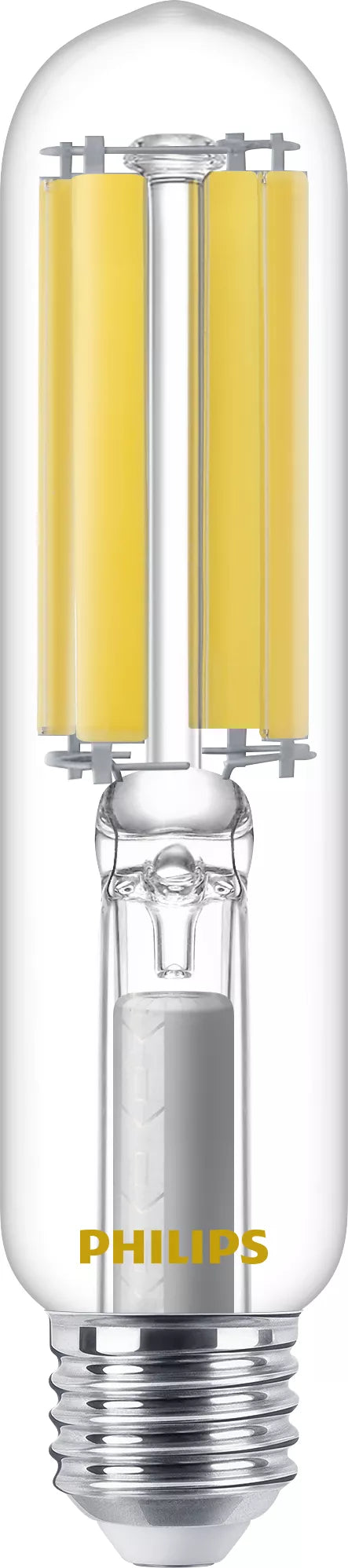

TForce Core LED road 17W 730 E27 MV
The new Philips Trueforce Core LED SON-T lamps offer you an easy, short-payback
LED solution to replace High Intensity Discharge (HID) lamps. This new generation of
products brings all the energy-efficiency and long-lifetime benefits of LED to HID
replacement, while providing instant saving with a low initial investment.
Furthermore, they’re designed to have the same lamp size and light distribution as
other HID lamps, so you will never know the difference. All thanks to our HighPower LED filament technology. Plus, its unique IP65 design means it can be used
for outdoor applications.
Warnings and Safety
• Please refer to the installation guide or consult a Philips Lighting representative for the wiring diagram and instructions.
Product data
General Information
Cap base E27
Nominal lifetime 25,000 h
Switching Cycle 15,000
Lighting Technology LED
Flux measurement reference Sphere
CE mark Yes
EU RoHS compliant Yes

Light Technical
Colour Code 730 [CCT of 3000K]
Luminous Flux 2,800 lm
Colour designation White (WH)
Correlated Colour Temperature 3000 K
Luminous efficacy (rated) (nom.) 164.00 lm W
Colour consistency <6
Colour rendering index (CRI) 70
LLMF at end of nominal lifetime (nom.) 70 %
Flickering value (PstLM) 1
Stroboscopic effect 3.3
Photobiological safety according to EN 62471 RG1

Operating and Electrical
Line Frequency 50 to 60 Hz
Input frequency 50 to 60 Hz
Power Consumption 17 W
Lamp current (nom.) 80 mA
Starting time (nom.) 0.5 s
Datasheet, 2023, April 15 data subject to change
Lighting Lighting
Warm-up time to 60% light 0.5 s
Power Factor (Fraction) 0.9
Voltage (nom.) 220-240 V
Inrush current at mains 10.1
Max. lamp no. on MCB B type 10A — Mains 9
Max. lamp no. on MCB B type 10A — EM ballast
without Comp. Cap.
–
Max. lamp no. on MCB B type 10A — EM ballast
with Comp. Cap.
–
Max. lamp no. on MCB B type 16A — Mains 14
Max. lamp no. on MCB B type 16A — EM ballast
without Comp. Cap.
–
Max. lamp no. on MCB B type 16A — EM ballast
with Comp. Cap.
–
Ballast Compatibility Mains

Temperature
Ambient temperature range -30 to +45 °C
T-Case maximum (nom.) 29.7 °C

Controls and Dimming
Dimmable No

Mechanical and Housing
Lamp Finish Clear
Bulb shape T-shape

Approval and Application
Energy Efficiency Class C
Energy consumption kWh 1,000 hours 17 kWh
EPREL registration number 1641604

Product Data
Order product name TForce Core LED road 17W 730 E27
MV
Full product name TForce Core LED road 17W 730 E27
MV
Full EOC 871951431625600
Order code 31625600
Material no. (12 NC) 929002484802
SAP numerator – quantity per pack 1
EAN UPC — Product Case 8719514316256
Numerator – packs per outer box 6
EAN UPC – Case 8719514316263
Dimensional drawing
D
C
Product D C
TForce Core LED road 17W 730 E27 MV 38 mm 170 mm
