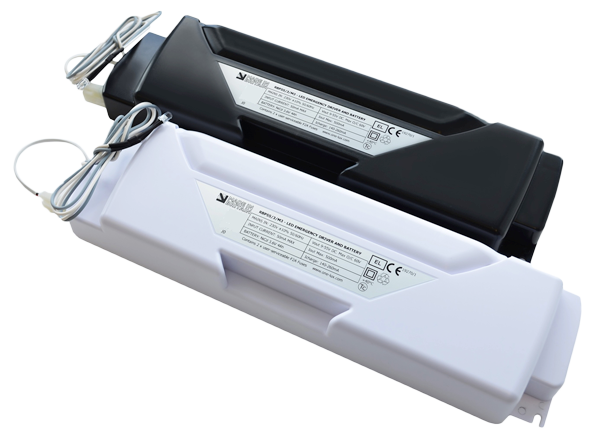

R KIT OL55

9-55v

An effective solution for emergency conversion of luminaries using LED arrays.

Features:

• Ideal for use with LED panels or downlights
• External battery connector for simple isolation
• 3 pole isolation of lamp & mains driver power during emergency
• Conforms to EN60598-1 & EN60598-2-22
• Driver complies with: EN61347-1, EN61347-2, EN55015, EN61000-3-2, EN61547
• Mating panel plug & socket connections available on request
• 5 year warranty

DIMENSIONS

320(l) x 88(w) x 42(h)



Technical Data Order Code R KIT OL55 Input Supply Voltage 230V + – 10% LED Voltage Range 9-55V DC Battery Type 3.6V NiCD Ambient Temperature Range 5-35C IP Rating IP20 Dimensions (mm) 320(l) x 88(w) x 42(h) Minimum Ceiling Cut-Out Size 100mm Weight 0.7kg
