Osram Led Hti Dali 315w Dim Dali to Mains Converter 4008321957344 Online now

$91.51

20 people are viewing this right now
9 products sold in last 1 hour
Selling fast! Over 11 people have this in their carts
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

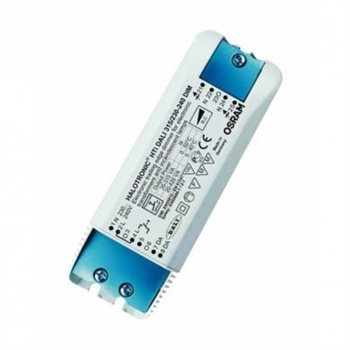

HTI DALI 315 DIM V2



Product Features:



– Trailing edge – Dimmer

– DALI & TOUCH DIM interface

– Can control up to 315 420 VA incandescent load

– Can control up to 200 VA LED retrofit-lamp load

– Min. load reduced to 3 VA



Product Benefits:



– Optimized for OSRAM LED retrofit-lamp and incandescent lamps

– Up to 200 VA LED retrofit-lamp load corresponded 1200 W halogen equivalent

– Plug and play installation

– Cable clamp included

– Short-circuit protection, overload protection, over temperature protection: electronically reversible

– Standby power consumption < 0.5 W



Application Areas:



– Spot- and Ambient- lighting

– Residential Shop Hospitality areas

– Classic lighting areas

– Trade



Equipment Accessories:



Suitable for all OSRAM HALOTRONIC and ET-PARROT ECGs



– EAN: 4008321957344

– Load capacity (R, C): 20-315 VA (at 50 C)

– Load capacity (R, C): 20-420 VA (at 40 C)

– Load capacity (LED): 3-200 VA (at 40-50 C)

– Standby power consumption: =< 0.5 W

– Device power losses: =< 4 W

– Nominal voltage: 220-240 V

– Mains frequency: 50 Hz

– DC Operation: NOT ALLOWED!

– Length: 153.0 mm

– Width: 54.0 mm

– Height: 36.0 mm

– Mounting hole spacing, width: 15.0 mm

– Mounting hole spacing, length: 146.0 mm

– Product weight: 137.00 g

– Ambient temperature range: 0 +50 C

– Design version: Compact with cable clamp

– Dimming method: Trailing-edge dimmer

– Dimming interface: DALI Touch DIM

– Max. cable length to lamp LED module: 2.0 m

– Dimmable: Yes

– Dimming range: 0.1-100 %

– Type of protection: IP20
