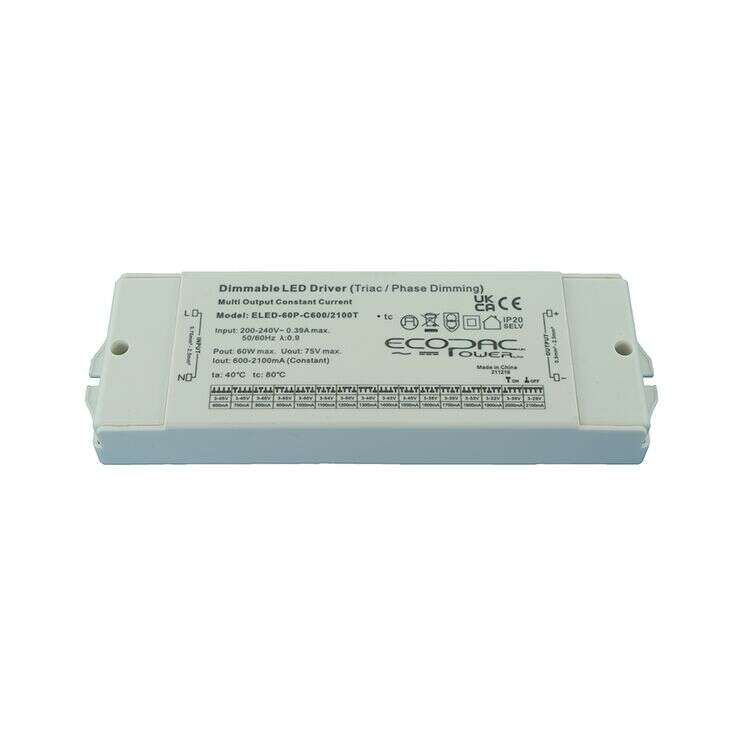

ELED-60P-C600 2100T 60W Triac (leading&Trailing) Dimming Dip-Switch Output Current LED Driver Online now
30 people are viewing this right now
13 products sold in last 20 hours
Selling fast! Over 5 people have this in their carts
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
ELED-60P-C600-2100T Series Features:
Features:
• Constant Current mode output with multiple levels selectable by dip switch
• Dimming function: Triac phase cut dimming
• Work with leading or trailing edge Triac dimmer
• (ON key: leading edge; 1 key: trailing edge)
• AC input: 200-240VAC
• Built-in active PFC function
• Efficiency up to 83%
• IP20 design for indoor installation
• Full protection plastic housing easy installation
• Protections: Short circuit Over load
• Cooling by free air convection
• Suitable for LED lighting and moving sign applications
• Strong compatibility, flicker-free dimming
| ELED-60P-C600-2100T(C600mA) | ELED-60P-C600-2100T(C700mA) | ELED-60P-C600-2100T(C800mA) | ELED-60P-C600-2100T(C900mA) | ELED-60P-C600-1200T(C1000mA) | ELED-60P-C600-2100T(C1100mA) | ELED-60P-C600-2100T(C1200mA) | ELED-60P-C600-1200T(C1300mA) | ELED-60P-C600-2100T(C1400mA) | ELED-60P-C600-2100T(C1500mA) | ELED-60P-C600-2100T(C1600mA) | ELED-60P-C600-2100T(C1700mA) | ELED-60P-C600-2100T(C1800mA) | ELED-60P-C600-2100T(C1900mA) | ELED-60P-C600-2100T(C2000mA) | ELED-60P-C600-2100T(C2100mA) | ||||||||||||||||||
| Wattage | 39 | 45.5 | 52 | 58.5 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | |||||||||||||||||
| Input Voltage | 200~240 | 200~240VAC | 200~240VAC | 200~240VAC | 200~240 | 200~240VAC | 200~240VAC | 200~240VAC | 200~240VAC | 200~240VAC | 200~240VAC | 200~240VAC | 200~240VAC | 200~240VAC | 200~240VAC | 200~240VAC | |||||||||||||||||
| Output Current | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 | 1400 | 1500 | 1600 | 1700 | 1800 | 1900 | 2000 | 2100 | |||||||||||||||||
| Output Voltage | 3~65 | 3~65 | 3~65 | 3~65 | 3~60 | 3~55 | 3~50 | 3~46 | 3~43 | 3~40 | 3~38 | 3~35 | 3~33 | 3~32 | 3~30 | 3~39 | |||||||||||||||||
| Dimensions | 192.5 x 62 x 24 mm | 192.5 x 62 x 24 mm | 192.5 x 62 x 24 mm | 192.5 x 62 x 24 mm | 192.5 x 62 x 24 mm | 192.5 x 62 x 24 mm | 192.5 x 62 x 24 mm | 192.5 x 62 x 24 mm | 192.5 x 62 x 24 mm | 192.5 x 62 x 24 mm | 192.5 x 62 x 24 mm | 192.5 x 62 x 24 mm | 192.5 x 62 x 24 mm | 192.5 x 62 x 24 mm | 192.5 x 62 x 24 mm | 192.5 x 62 x 24 mm | |||||||||||||||||
| Working Temperature | -40~60°C | ||||||||||||||||||||||||||||||||
| Safety Standards | EN61347-1, EN61347-2-13, UL8750 | ||||||||||||||||||||||||||||||||
| EMC Standards | Compliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B | ||||||||||||||||||||||||||||||||
| Title | Default Title |
|---|
