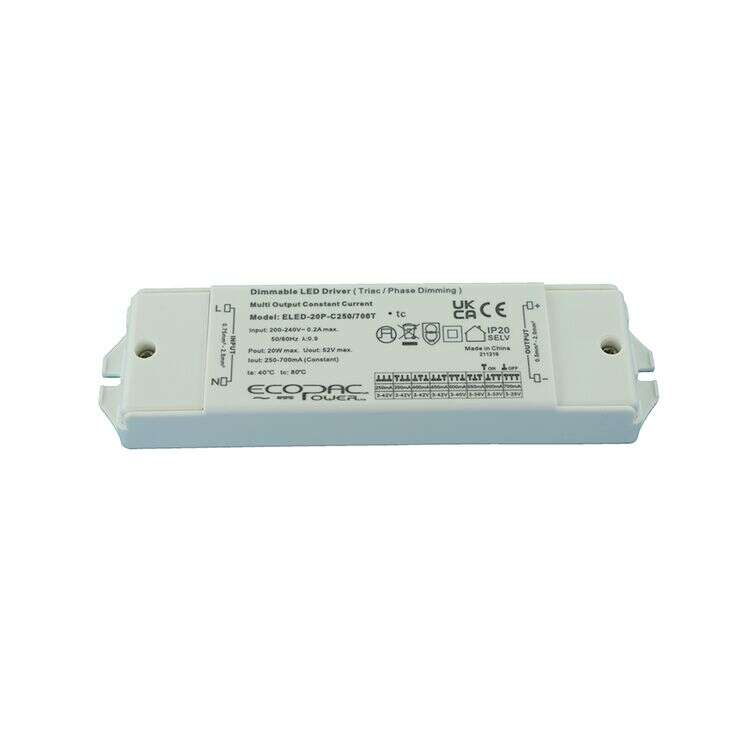

ELED-20P-C250-700T Constant Current LED Drivers 10.5–20.3W For Discount
24 people are viewing this right now
20 products sold in last 20 hours
Selling fast! Over 13 people have this in their carts
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
ELED-20P-C250-700T Series Features:
Features:
• Constant Current mode output with multiple levels selectable by dip switch
• Dimming function: Triac phase cut dimming
• Work with leading or trailing edge Triac dimmer
• (ON key: leading edge; 1 key: trailing edge)
• AC input: 200-240VAC
• Built-in active PFC function
• Efficiency up to 78%
• IP20 design for indoor installation
• Full protection plastic housing easy installation
• Protections: Short circuit Over load
• Cooling by free air convection
• Suitable for LED lighting and moving sign applications
• Strong compatibility, flicker-free dimming
| Spec | ELED-20P-C250-700T(C700mA) | ELED-20P-C250-700T(C600mA) | ELED-20P-C250-700T(C550mA) | ELED-20P-C250-700T(C500mA) | ELED-20P-C250-700T(C450mA) | ELED-20P-C250-700T(C400mA) | ELED-20P-C250-700T(C350mA) | ELED-20P-C250-700T(C250mA) | |||||||||
| Wattage | 20.3 | 19.8 | 19.8 | 20 | 18.9 | 16.8 | 14.7 | 10.5 | |||||||||
| Input Voltage | 200~240VAC | 200~240VAC | 200~240VAC | 200~240VAC | 200~240VAC | 200~240VAC | 200~240VAC | 200~240VAC | |||||||||
| Output Current | 700 | 600 | 550 | 500 | 450 | 400 | 350 | 250 | |||||||||
| Output Voltage | 3~29 | 3~33 | 3~36 | 3~40 | 3~42 | 3~42 | 3~42 | 3~42 | |||||||||
| Dimensions | 159 x 43x 20 mm | 159 x 43x 20 mm | 159 x 43x 20 mm | 159 x 43x 20 mm | 159 x 43x 20 mm | 159 x 43x 20 mm | 159 x 43x 20 mm | 159 x 43x 20 mm | |||||||||
| Working Temperature | -40~60°C | ||||||||||||||||
| Safety Standards | EN61347-1, EN61347-2-13, UL8750 | ||||||||||||||||
| EMC Standards | Compliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B | ||||||||||||||||
| Title | Default Title |
|---|
