Showing 1–16 of 25 results

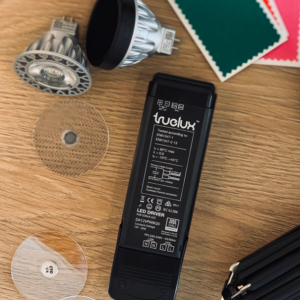

AN12VPWM-20 DRIVER LED PWM-12v 1-10v DIMMING IP20 TRUELUX For SORAA LAMPS DATASHEET MODEL: AN12VPWM20 TYPE: Constant Voltage DIMMING CONTROL: 0 1-10V OUTPUT VOLTAGE: 12V OUTPUT CURRENT: 1.66A DIMMING RANGE: 1-100% RATED SUPPLY VOLTAGE: 220 – 240V AC MAX LOAD: 20W
Only the C version still available in small quantities Datasheet Specifications Technical data Information Brand Harvard Power Systems Commodity 8504408390 Item number CL700AL-240-C Warranty pack 60 Months Bring-In Series CL RoHS Compliant Description AC-DC 21W LED driver Constant Current mode (CC); Max. output 20Vdc at 0.7A; IP20; Dimming with 0-10V; Remote control Packing Quantity 40…

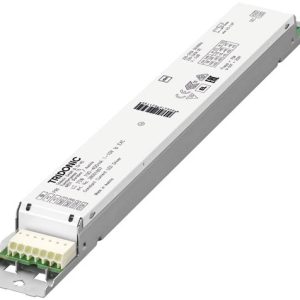

Driver LC 75W 100–400mA 1-10V lp EXC Linear drivers Data sheet Product description Constant current LED driver for luminaire installation Dimmable via 1 … 10 V interface Dimming range 10 – 100 % (Depending on load, for details refer to chapter 4.7 Dimming in data sheet.) For luminaires of protection class I and protection class…
Driver LC 75W 250–550mA 1-10V lp EXC Linear drivers Data sheet Product description Constant current LED driver for luminaire installation Dimmable via 1 … 10 V interface Dimming range 10 – 100 % (Depending on load, for details refer to chapter 4.7 Dimming in data sheet.) For luminaires of protection class I and protection class…

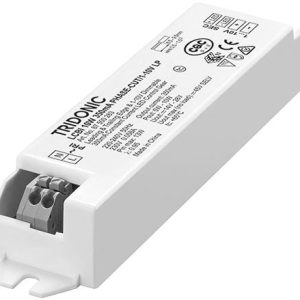

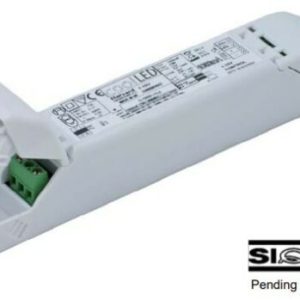

Driver LCBI 10W 180 350 500mA PHASE-CUT 1–10V lp advanced series Product description Dimmable built-in constant current LED driver Constant current LED driver Dimmable via leading edge and trailing edge phase dimmers Dimmable via 1 … 10 V Output dimmed analogue (current amplitude) Dimming range typ. 10 to 100 % (depending on dimmer) For luminaires…

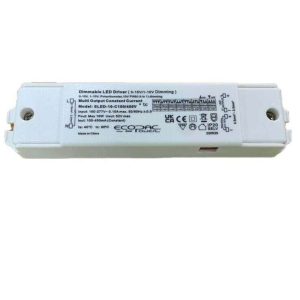

ELED-10-C100 450V Series0-10V Dimmable Constant Current LED Drivers 10W Download Datasheet ELED-10-C100 450V(450mA)ELED-10-C100 450V(4000mA)ELED-10-C100 450V(350mA)ELED-10-C100 450V(300mA)ELED-10-C100 450V(250mA)ELED-10-C100 450V(200mA)ELED-10-C100 450V(150mA)ELED-10-C100 450V(100mA)Wattage1010101010101010Input Voltage100~277VAC100~277VAC100~277VAC100~277VAC100~277VAC100~277VAC100~277VAC100~277vVACOutput Current450mA400mA350mA300mA250mA200mA150mA100mAOutput Voltage Options3~223~253~293~333~403~423~423~42Dimensions135 x 30x 20 mm135 x 30x 20 mm135 x 30x 20 mm135 x 30x 20 mm135 x 30x 20 mm135 x 30x 20 mm135 x 30x 20 mm135 x 30x 20…

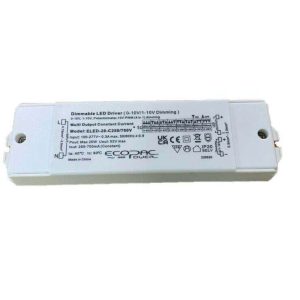

ELED-20-C250 700V Series Features: https: www.ecopacpower.co.uk assets pdf ELED-20-C250-700V_2022-06-20-143631.pdf Features: • Constant Current mode output with multiple levels selectable by dip switch • 0 1-10V Dimming Control • AC input: 100-277VAC • Built-in active PFC function • Efficiency up to 81% • Protections: Short circuit Over load Over temperature • Cooling by free air convection…

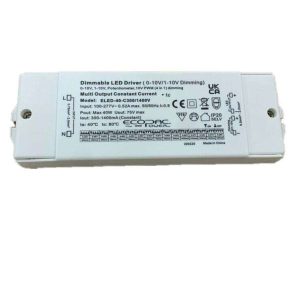

ELED-40-C300 1400V Series Features: Features: • Constant Current mode output with multiple levels selectable by dip switch • 0 1-10V Dimming Control • AC input: 100-277VAC• Built-in active PFC function• Efficiency up to 82%• Protections: Short circuit Over load Over temperature

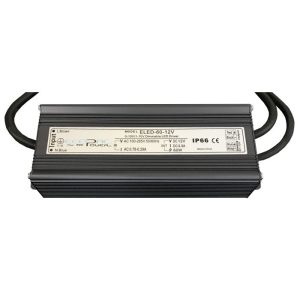

Three in one dimming function (0 1-10Vdc or PWM signal or resistance) IP66 design for indoor or outdoor installation Protections: Short circuit Over Current Over Temperature Over Loading Other features: Universal AC input Full range 100-265VAC Built-in active PFC function Dimming range: 0-100% 3 years warrantyMore Information Manufacturer Ecopac Power Output Wattage (W) 60 Output Voltage…

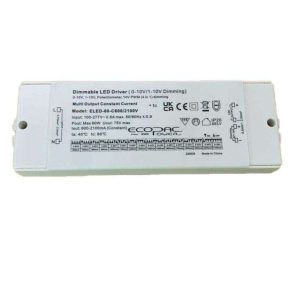

ELED-60-C600 2100V(2100mA) ELED-60-C600 2100V(2000mA) ELED-60-C600 2100V(1900mA) ELED-60-C600 2100V(1800mA) ELED-60-C600 2100V(1700mA) ELED-60-C600 2100V(1600mA) ELED-60-C600 2100V(1500mA) ELED-60-C600 2100V(1400mA) ELED-60-C600 2100V(1300mA) ELED-60-C600 2100V(1200mA) ELED-60-C600 2100V(1100mA) ELED-60-C600 2100V(1000mA) ELED-60-C600 2100V(900mA) ELED-60-C600 2100V(800mA) ELED-60-C600 2100V(700mA) ELED-60-C600 2100V(600mA) Wattage 60 60 60 60 60 60 60 60 60 60 60 60 58.5 52 45.5 39 Input Voltage 100~277VAC 100~277VAC 100~277VAC 100~277VAC…

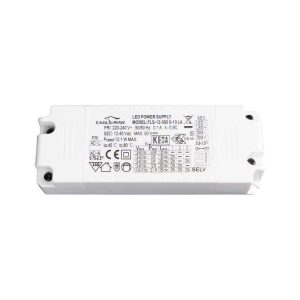

This item is no longer available please call for alternatives FLS-12-350 0-10 LA Features: Constant current design Input Voltage 220-240VAC Other features: Protections: short circuit over load over voltage IP20 Ingress protection Power Factor b %0.9 Efficiency b %80% Class II, SELV 0-10V dimmable Current ADJ. by dip-switch 5 years warranty ■Specification Input Rated input…

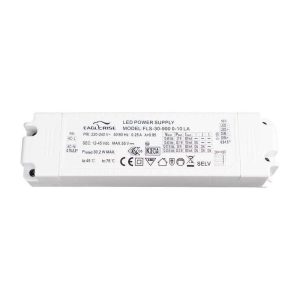

FLS-30-900 0-10 LA Features: Constant current design Input Voltage 220-240VAC Other features: Protections: short circuit over load over voltage IP20 Ingress protection Power Factor b %0.95 Efficiency b %83% Class II, SELV 0-10V dimmable 5 years warranty Intelligent Series PF0.9 – 0-10V dimmable 30W FLS-30-900 0-10 LA REV1.2.2 ▲Constant current design ▲Input Voltage 220-240VAC ▲Protections:…
Depth31.5mmLead FreeLead FreeLength179mmNominal Output Voltage48VNumber of Channels1Output Current350mAOutput Power33WOutput Voltage48VTerminationTerminal BlockWidth31mm https: datasheet.ciiva.com 5802 1444537-5802780.pdf

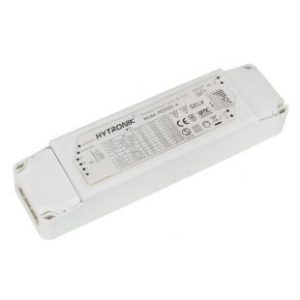

Description Constant current, Multi-current selection, switch-DIM & 1-10V dimming, 50W Model no.:HE2050-A 1x50WSwitch-DimSynchronizationPermanent memory Technical Data Mains voltage: 220~240VAC 50 60Hz Mains current: 270mA ~242mA (Max) Max. output power current voltage: 25W 350mA 15~72V;36W 500mA 15~72V;40W 550mA 15~72V;43W 600mA 15~72V; 47W 650mA 15~72V;50W 700mA 15~72V;50W 800mA 20~63V;50W 900mA 20~56V; 50W 1050mA 20~48V Power…

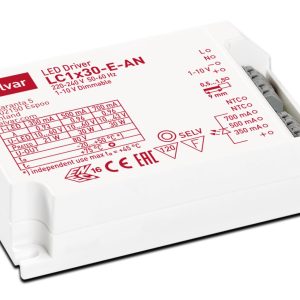

30 W 1–10 V dimmable LED driver 350 mA 500 mA 700 mA multiple currents output Lifetime up to (h): 100000 Dimming range: 1% – 100% Product number: 5 504 004 More information: OUTCOAT, PanelReady Datasheet Voltage range (V): 198–264 DC range (V): 176–280 Max temperature at Tc point (°C): 75 Ambient temperature range: –20 °C .. +50…
